hmmmm16417
|
|
Post subject: Mean old Mr. Rust is chomping away.....
 Posted: Jun 13, 2011 - 03:20 AM
|
|
Member
Joined: May 29, 2011
Posts: 71
Location: Erie, PA
Status: Offline
|
|
So, my son and i were starting his "new" tempo. We replaced the plastic valve cover with an aluminum one and We finally got the bumper cover off to expose the rear fender / quarter panel. It's actually not as bad as I thought (hahahaha) - but still needs some major work!
I did notice that the rear floor is starting to look a little soft, but still has a while before there is any holes. I'm sure my son will only have the car for a year or two anyways (if that LOL)
Any suggestions on the easiest way to tackle the project since you can't just buy pre formed panels cheap? I've never done body work before, and my son just started auto body in tech school (10th grade) -
I'm sure I will figure it out being an engineering type person, but it's always nice to have a more planned direction .
valve cover

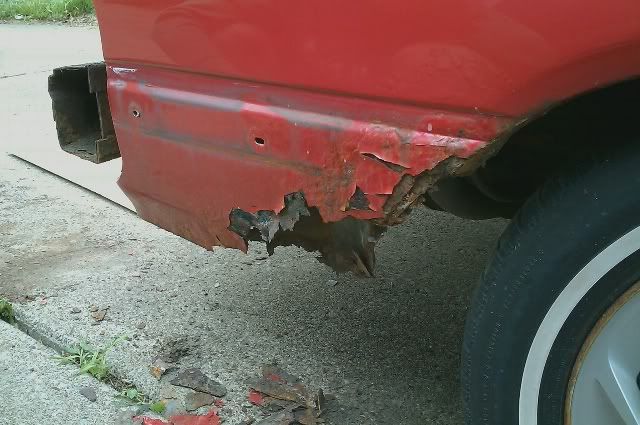

drivers side
passenger side
 |
|
|
| |
|
|
|
 |
|
533y4
|
|
|
Post subject: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 13, 2011 - 08:42 AM
|
|
Active Member
Joined: Jan 11, 2011
Posts: 354
Status: Offline
|
|
| Fiberglass or bondo molding? |
_________________
85 Olds Cutlass Supreme*
94 Tempo GL - Most reliable
95 Honda Civic - Blew engine*
95/96 T-Bird/Cobra*
96 Nissan Maxima - Fixer
03 Dodge SRT4 - Tranny blew*
05 Saleen Focus - "Lemon Lawed"*
07 Chevy Cobalt - Crappy warranty*
08 Pontiac G6 - Boring*
*Sold/crushed
|
| |
|
|
|
|
|
Big Daddy D.
|
|
|
Post subject: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 13, 2011 - 11:36 AM
|
|
Moderator
Joined: Aug 30, 2001
Posts: 2942
Location: Brantford Ontario
Status: Offline
|
|
3M has aluminum mesh body patches the you can buy to cut and mold. They have adhesive on one side of them to help stick to bare metal, but I would use a few rivets or self tapping screws as well. Then fill in with fiberglass cloth and resin, topcoat with a little bondo and paint.
I'll say it again... are you sure that there isn't any rust damage to the rear strut towers? |
_________________
Papa to Olivia , Charlotte & Jackson!
Member Since May 1999
Modded 2006 F150 XLT Super Crew Pickup (5.4L)
Formerly owned two Topaz V6, 5spd.'s (/92 & /93 2 Dr. Coupes)
|
| |
|
|
|
|
|
hmmmm16417
|
|
|
Post subject: Re: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 13, 2011 - 11:44 AM
|
|
Member
Joined: May 29, 2011
Posts: 71
Location: Erie, PA
Status: Offline
|
|
|
Big Daddy D. wrote:
3M has aluminum mesh body patches the you can buy to cut and mold. They have adhesive on one side of them to help stick to bare metal, but I would use a few rivets or self tapping screws as well. Then fill in with fiberglass cloth and resin, topcoat with a little bondo and paint.
I'll say it again... are you sure that there isn't any rust damage to the rear strut towers?
Doesn't appear to be - I will take some pics when I get home from work. from inside the trunk, the strut towers look and feel clean and solid
I have all new struts and springs (and bushings) that I will be putting on soon also - so I'll see EVERYTHING inside there soon hahaha |
|
|
| |
|
|
|
|
|
hmmmm16417
|
|
|
Post subject: RE: Re: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 13, 2011 - 12:44 PM
|
|
Member
Joined: May 29, 2011
Posts: 71
Location: Erie, PA
Status: Offline
|
|

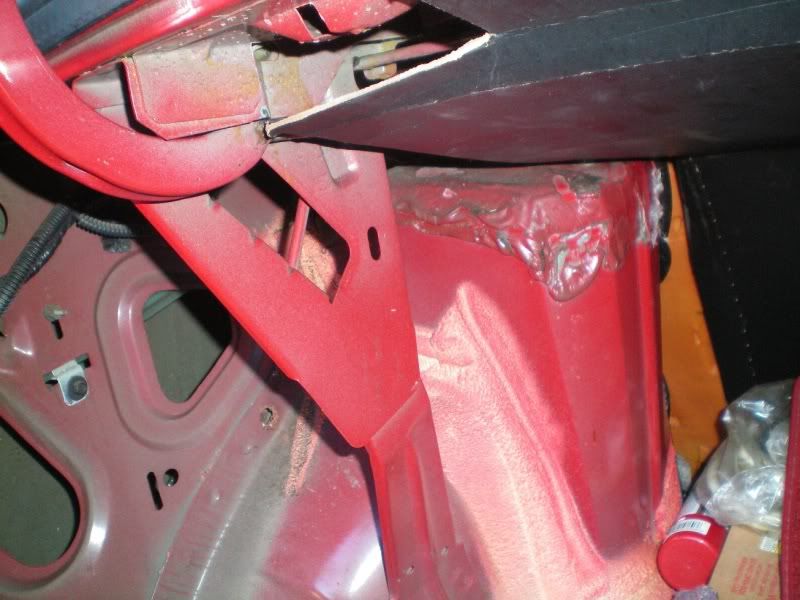

Here are pics of strut towers (assuming this is what you are talkin about haha)
Tell me what you think......
if you look closely at this one in upper right corner of pic, there is a LITTLE rust, but still very solid
 |
|
|
| |
|
|
|
|
|
MagicPatrick
|
|
|
Post subject: RE: Re: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 14, 2011 - 06:15 AM
|
|
Member
Joined: Aug 02, 2009
Posts: 205
Location: Williamsport, Pa
Status: Offline
|
|
I'm researching to tackle my rust.
Both my tempos had the rear quarters gnawed away, so i just put the bumper cover back on and the problem was solved!! Heh, ok maybe not. LOL
Ok, well i found this forum thread (since im contemplating on doing the rear floor pans), but in just the 15-20 minutes i took to read it I learned more about welding than I ever knew.
Key points:
Harbor frieght welders are junk according to pros. only 2 settings.
When welding sheet metal, use the thinnest wire (Mig Welder) and lowest setting
and last but not least, flatten a piece of copper pipe and use neo or rare earth magnets to affix to the back of the weld/joint. It makes for smoother seems!
http://forum.ih8mud.com/40-55-series-tech/238954-floor-pan-repair.html
These^ guys done quarters, fender, and tons of pics.
I can almost guarentee if u give time to read it, you'll say bye bye to bondo forever! |
_________________
.
- 93 2.3L GL 4 door K2 Donor (Parts For SALE) "Ellie"
- 92 3.0L GL 4 door K3/K2 "The NECROMANCER"
|
| |
|
|
|
|
|
Big Daddy D.
|
|
|
Post subject: RE: Re: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 14, 2011 - 12:28 PM
|
|
Moderator
Joined: Aug 30, 2001
Posts: 2942
Location: Brantford Ontario
Status: Offline
|
|
hmmmm16417, looks to me that the right side strut tower is rusting through from the road side near the top, so when you remove the strut to replace it, make sure that you take preventative measures.
The factory spray on seam sealer is hideing the damage. |
_________________
Papa to Olivia , Charlotte & Jackson!
Member Since May 1999
Modded 2006 F150 XLT Super Crew Pickup (5.4L)
Formerly owned two Topaz V6, 5spd.'s (/92 & /93 2 Dr. Coupes)
|
| |
|
|
|
|
|
hmmmm16417
|
|
|
Post subject: RE: Re: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 15, 2011 - 02:27 AM
|
|
Member
Joined: May 29, 2011
Posts: 71
Location: Erie, PA
Status: Offline
|
|

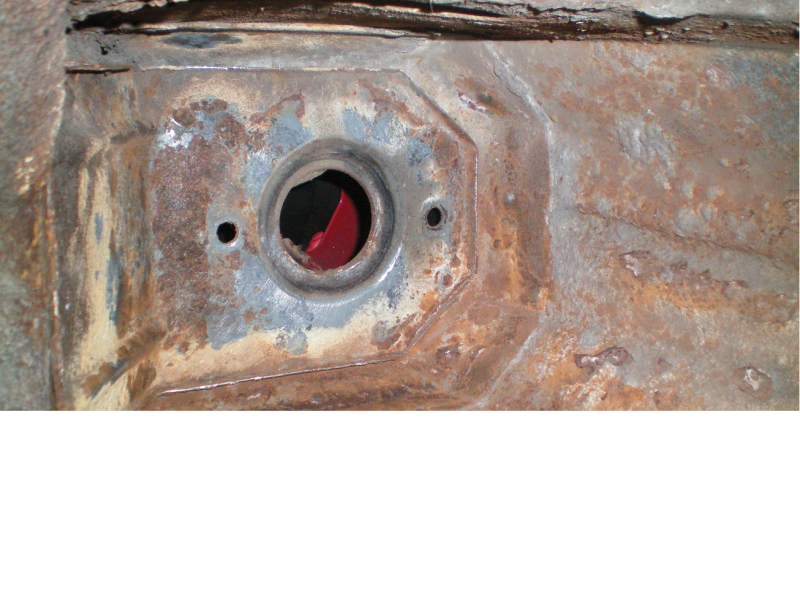

Alrightly! I got the passenger strut out, and wire brushed off the old flakey rust and road grime. It actually is pretty solid! You had me worried LOL
 |
|
|
| |
|
|
|
|
|
skenneyjr
|
|
|
Post subject: RE: Re: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 15, 2011 - 11:53 PM
|
|
Posting Freak
Joined: Jun 05, 2010
Posts: 663
Status: Offline
|
|
| Now get that rust out of there and slap some paint on it! |
|
|
| |
|
|
|
|
|
hmmmm16417
|
|
|
Post subject: RE: Re: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 16, 2011 - 02:07 AM
|
|
Member
Joined: May 29, 2011
Posts: 71
Location: Erie, PA
Status: Offline
|
|
IT's still sitting in the driveway, on a jack stand, with no strut :-/ Workin 7 days a week sucks LOL I have plans to re build my garage this year and I'm hopin to put a two post lift in  but then again, we have to remodel the one bathroom, finish the livingroom, and get the nursery ready for our package in November . hahaha needless to say, squeezing the tempo in isn't all that easy |
|
|
| |
|
|
|
|
|
Big Daddy D.
|
|
|
Post subject: RE: Re: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 16, 2011 - 11:52 AM
|
|
Moderator
Joined: Aug 30, 2001
Posts: 2942
Location: Brantford Ontario
Status: Offline
|
|
| Sounds like the "WAF" is playing a part in this... |
_________________
Papa to Olivia , Charlotte & Jackson!
Member Since May 1999
Modded 2006 F150 XLT Super Crew Pickup (5.4L)
Formerly owned two Topaz V6, 5spd.'s (/92 & /93 2 Dr. Coupes)
|
| |
|
|
|
|
|
hmmmm16417
|
|
|
Post subject: Re: RE: Re: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 16, 2011 - 01:07 PM
|
|
Member
Joined: May 29, 2011
Posts: 71
Location: Erie, PA
Status: Offline
|
|
|
Big Daddy D. wrote:
Sounds like the "WAF" is playing a part in this...
LMAO
So Big Daddy D., you think the area looks solid?
|
|
|
| |
|
|
|
|
|
Big Daddy D.
|
|
|
Post subject: RE: Re: RE: Re: RE: Mean old Mr. Rust is chomping away.....
Posted: Jun 16, 2011 - 02:07 PM
|
|
Moderator
Joined: Aug 30, 2001
Posts: 2942
Location: Brantford Ontario
Status: Offline
|
|
Hmm... I see a gap or its the joint where the strut tower joins up with the unit body.
You can fill that back in with automotive seam sealer, but I would apply something to halt the rust there before sealing it up.
Coating everything shown in that picture with either fiber glass resin or media blasting it, then apply epoxy primer before sealing it.
It looks like you caught it just in time... check out my post "The Former Fleet" in the T/T pic's forum , and you'll see what happened to my charcoal gray Topaz... so check to see if there are any reddy brown stains showing up on the road side of both towers on your red beastie as well.
BTW... those pic's of the gray Topaz where taken just before I parted it out and junked the rest of it. A $3200 complete body strip and base coat clear coat paint job killed by "Mr. Rust" just four years later. "She ain't pretty she just looks that way" , the strut tower broke away from the body during some "spirited driving". |
_________________
Papa to Olivia , Charlotte & Jackson!
Member Since May 1999
Modded 2006 F150 XLT Super Crew Pickup (5.4L)
Formerly owned two Topaz V6, 5spd.'s (/92 & /93 2 Dr. Coupes)
|
| |
|
|
|
|
|
hmmmm16417
|
|
|
Post subject:
Posted: Jun 16, 2011 - 02:15 PM
|
|
Member
Joined: May 29, 2011
Posts: 71
Location: Erie, PA
Status: Offline
|
|
" I see a gap or its the joint where the strut tower joins up with the unit body"
there are no gaps that I could see. so "soft" spots either. probably what you are seeing is the joint that has that seal stuff on it. even the seem appears to be pretty solid. the only spot that really looks bad is the fender and that metal "flap" that comes down from the trunk and connects to the fender. |
|
|
| |
|
|
|
|
|
Big Daddy D.
|
|
|
Post subject:
Posted: Jun 16, 2011 - 08:45 PM
|
|
Moderator
Joined: Aug 30, 2001
Posts: 2942
Location: Brantford Ontario
Status: Offline
|
|
Yes, like I said the joint... the sealant that the factory had over it has been leaking, due to it being rusty red on what is left of it.
You caught it just in time, based on what pitting that I am seeing in the surrounding steel work.
So now, get out a sharp blade and cut out the rest of the factory sealant from the joint and prep. it as you would, before re-sealing it back up. |
